Journey with Spring
MSRP: CAD $59.99
Buy online or find a local retailer (North America)

Product Info

Compatibility: 26”, 27”, 700c
Stay length: 365mm / 14.4”
Platform size: 390x150mm / 15.4”x5.9”
Weight: 926g / 2.04 lbs (including hardware)
Capacity: 70 kg / 154 lbs
Part Number: 171286 - Black
70kg

Load Capacity

Wheel Size

Wheel Size

26”, 27”, 700c

Alternate Views

Product Thumbnail <br />
<b>Notice</b>:  Undefined variable: x in <b>/home/axiom/public_html/includes/products.inc.php</b> on line <b>220</b><br />

Hover to zoom

Details
Video

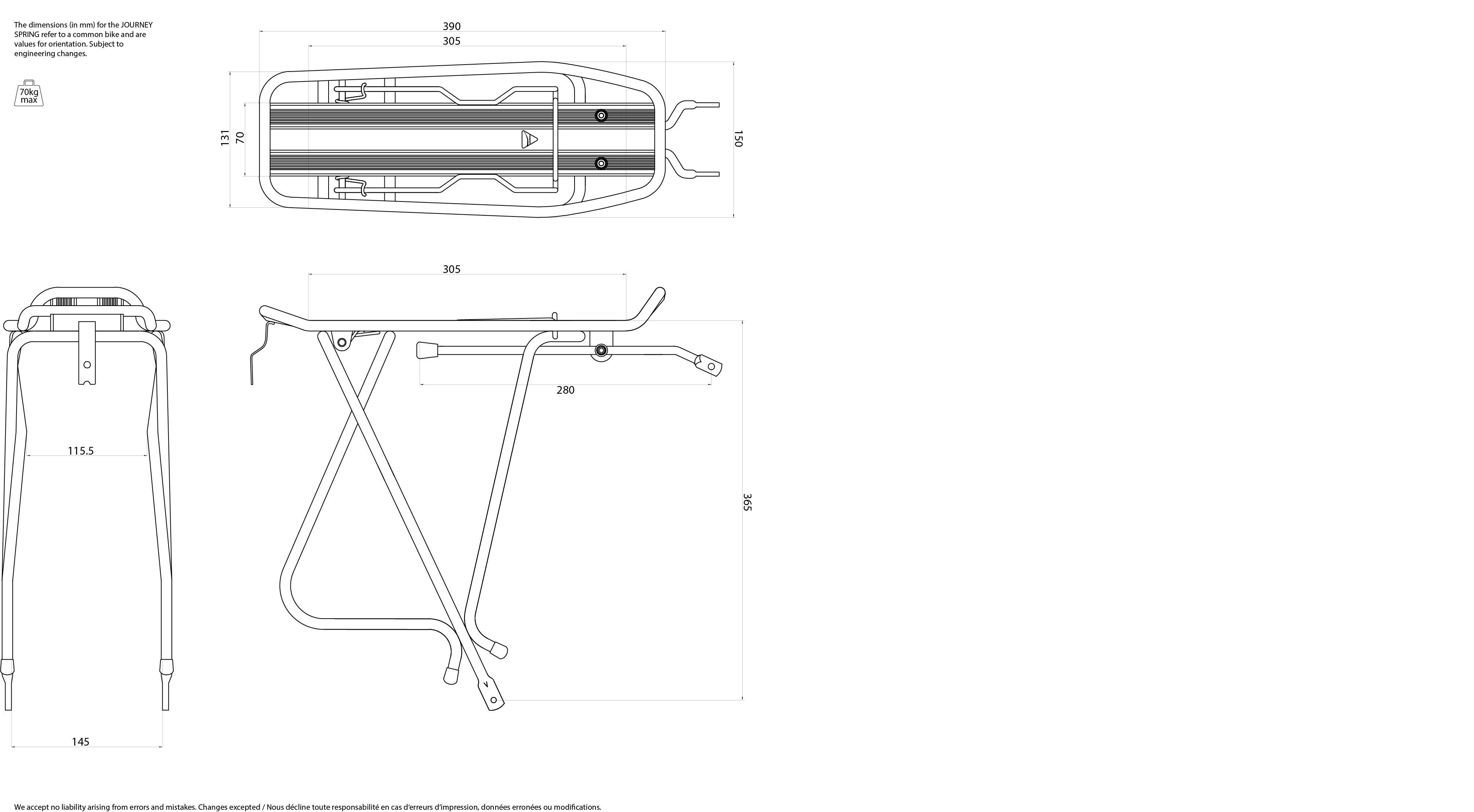

Dimensions

Racks don’t need to be expensive to be exceptional. They just need to be designed and built right. This spring-clamp-equipped pannier rack has a deep set of well-thought-out features for today’s bicycle and possesses industryleading weight capacity and durability.

Construction Hand-welded, tubular 10.2mm 6061 T6 aluminum.
Steel, spring-loaded top clamp.
Mounting System Extra-long (280mm), adjustable Versalock® arms (for frames with eyelets).
Features Great for attaching flexible loads such as jackets, backpacks, pool bags, sandals, etc...
Triple stay design has a sweepback frame that prevents pannier bags from bouncing into your wheel while you ride.
Suitable for frames with accommodations for racks (eyelets).
Generous platform size is optimized for top loading things like trunk bags and rear baskets.
Designed for modern bicycles by sitting your load further back over the wheel where it is supposed to sit.
Increased heel clearance.
Enhanced trunk bag / seat clearance improves trunk bag function, especially on smaller frames.
280mm Versalock® arms are long enough to fit even the smallest of bikes.
Versalock® arms can be DIY bent up to 30 degrees without reducing strength.
Double welded for extra strength and long-term durability.
Ample room for a full range of fender styles
Reflector/light mount, Frame bolts included
Lifetime Guarantee
Axiom products are warranted against manufacturing defects for the lifetime of the original purchaser. If a product is determined to be defective by the original Axiom dealer who sold the product, it will be replaced at no charge with original proof of purchase.
