Made from recycled aluminum

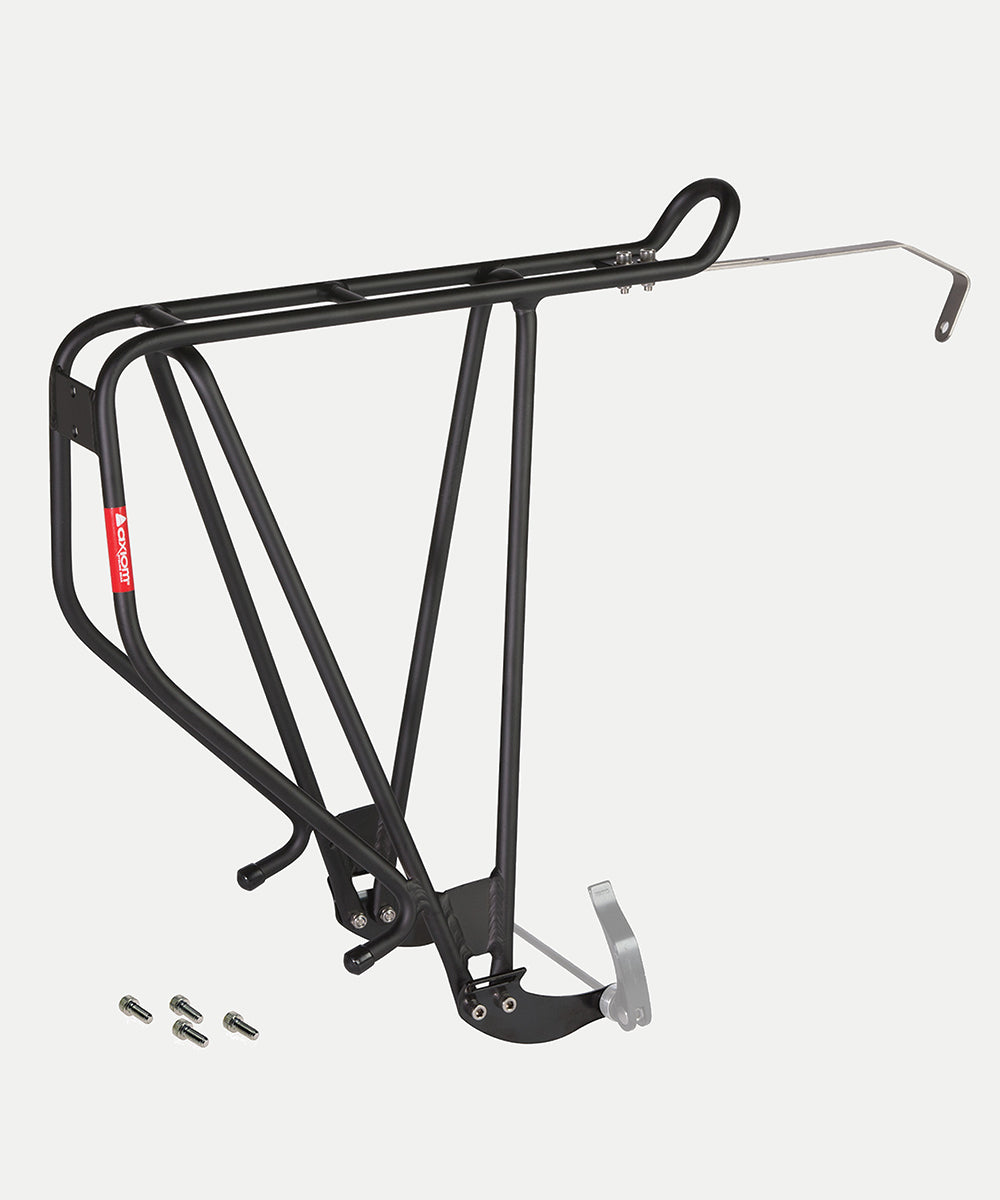

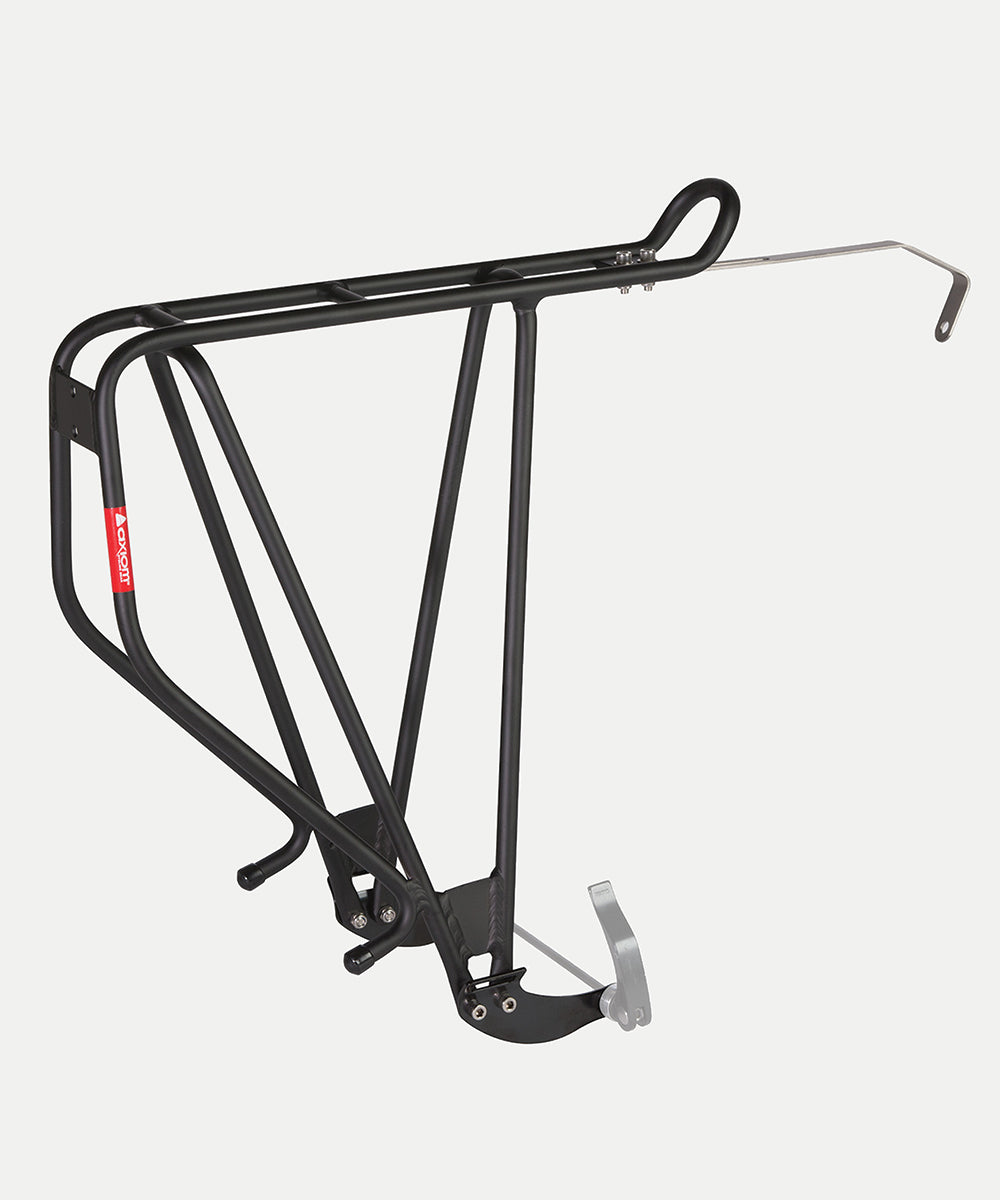

Streamliner Road DLX Rack

Name: Transit Rack
Brand: Axiom
Price: 49.99 CAD
Availability: InStock

$74.99

Want to turn your road or Fondo bike into a commuting machine? The Streamliner Road DLX is just the ticket, and gives you mounting options if your bike doesn’t have frame eyelets.

The design works well with short chainstays and tight tolerances, and it pushes the rack further back over your rear wheel for better heel clearance. The narrow profile keeps panniers closer to the centre for speed and stability. We’re also proud of the material: high-quality recycled aluminum, chosen for its strength and sustainability.

Features

Exceptional torsional stiffness.
Suitable for use with all frame materials, including carbon fibre.
Attaches to a standard quick-release skewer or to traditional dropout eyelets.
Streamlined profile improves aerodynamics and greatly improves handling by keeping your load closer to center.
Modular sweepback feet maximize heel clearance and accommodate disc brakes without adding needless extra width that otherwise affects handling.

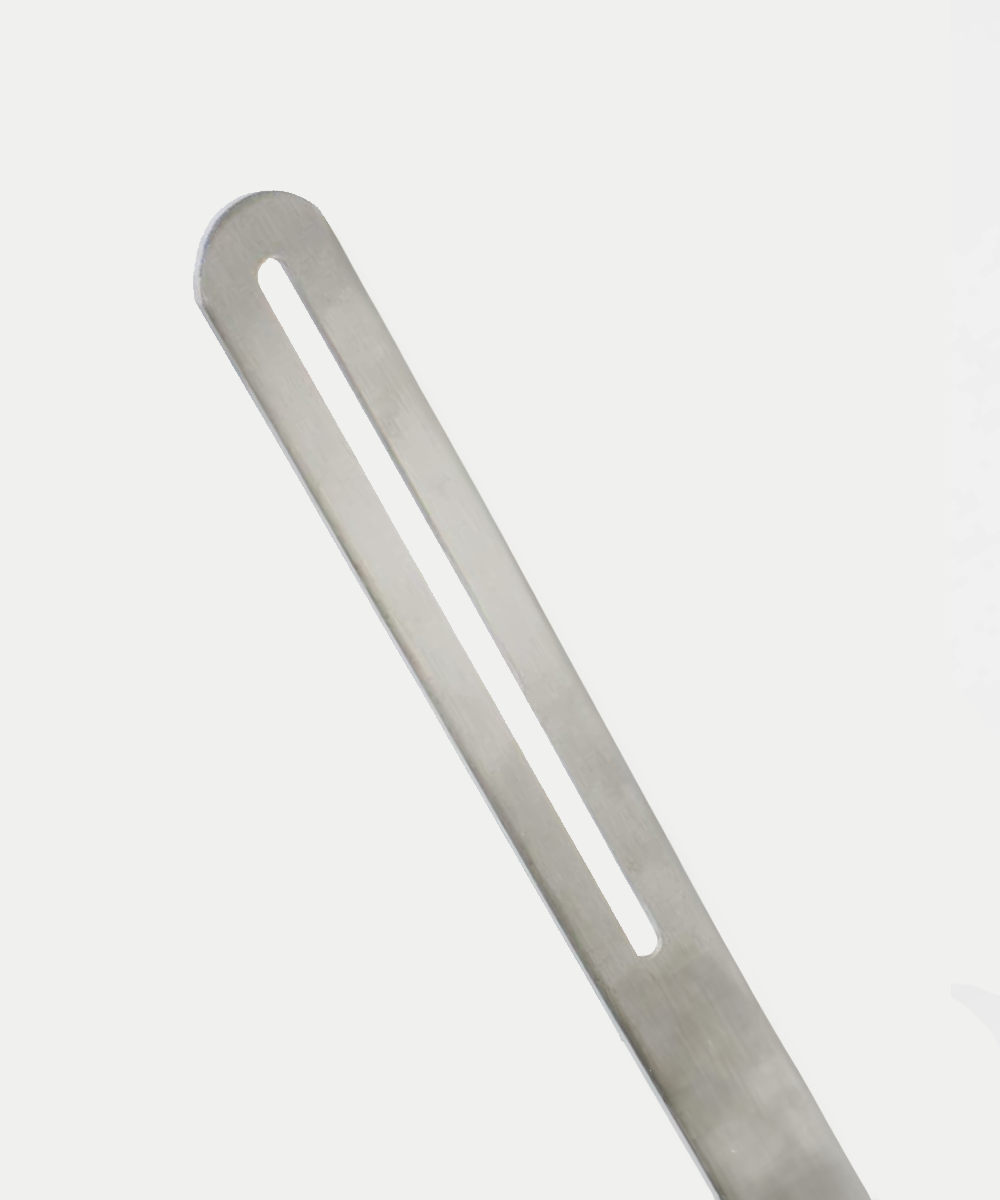

Stainless steel center bracket can be DIY bent to accommodate a wide variety of frame designs.
Double welded for extra strength and long-term durability.
Rear bolts on feet can be used as fender mounts.

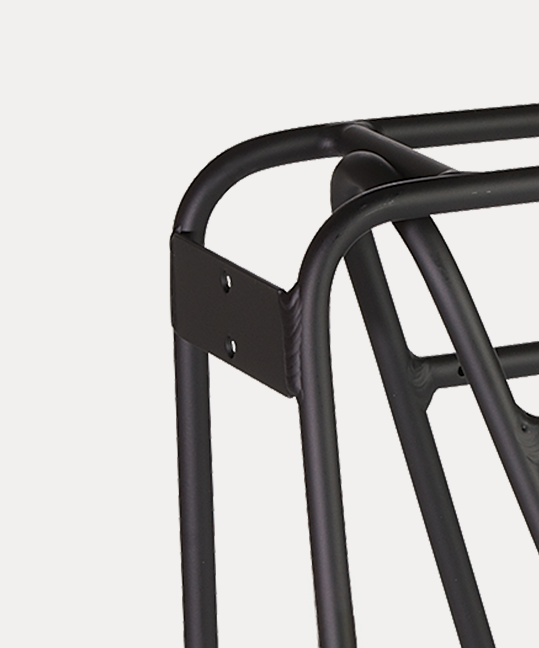

Reflector/light mount, Frame bolts included
Lifetime warranty.

Mounting

Feet mount to a standard quick-release skewer* (not included) or to traditional eyelets.
Center bracket can be attached to a brake caliper or fender bridge.
Optional (171356-17) 'Nutted Axle Kit' can be used to fit bikes with bolted axles.

Materials

recycled tubular 10.2 mm 6061 T6 aluminum

Compatibility

Fits wheel sizes: 700c

Disc brake compatible
Quick-release skewer compatible

Specifications

Stay length: 390 mm / 15.4" Platform size: 355 x 60 mm / 14" x 2.4" Weight: 510 g / 1.12 lbs (including hardware) Capacity: 50 kg / 110 lbs

Item number: 171285
